Malleable Elbow 45°

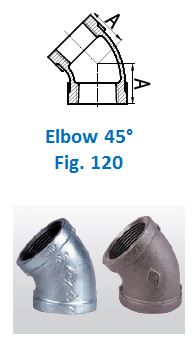

A technical drawing and two photographs of a 45-degree elbow pipe fitting. The technical drawing shows the dimensions and angle of the elbow, labeled as "A". Below the drawing, the text reads "Elbow 45° Fig. 120". The photographs show two different materials of the elbow fitting, one in a metallic finish and the other in a darker, possibly cast iron finish.
A table showing the nominal bore sizes in both metric and imperial units, the length from the center to face dimension in millimeters, and the weight of each item in kilograms. The table includes sizes from 6 mm (1/8 inch) to 100 mm (4 inches), with corresponding lengths ranging from 16 mm to 96 mm and weights from 0.03 kg to 2.61 kg.

To download our data sheet as a PDF, please click the link below.

45 deg elbows fig.120
