Malleable M/F Elbow 45°

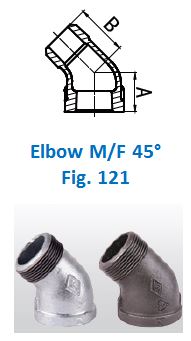

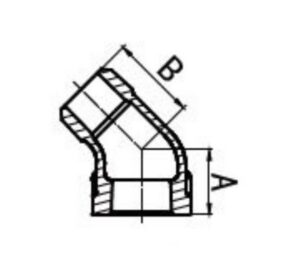

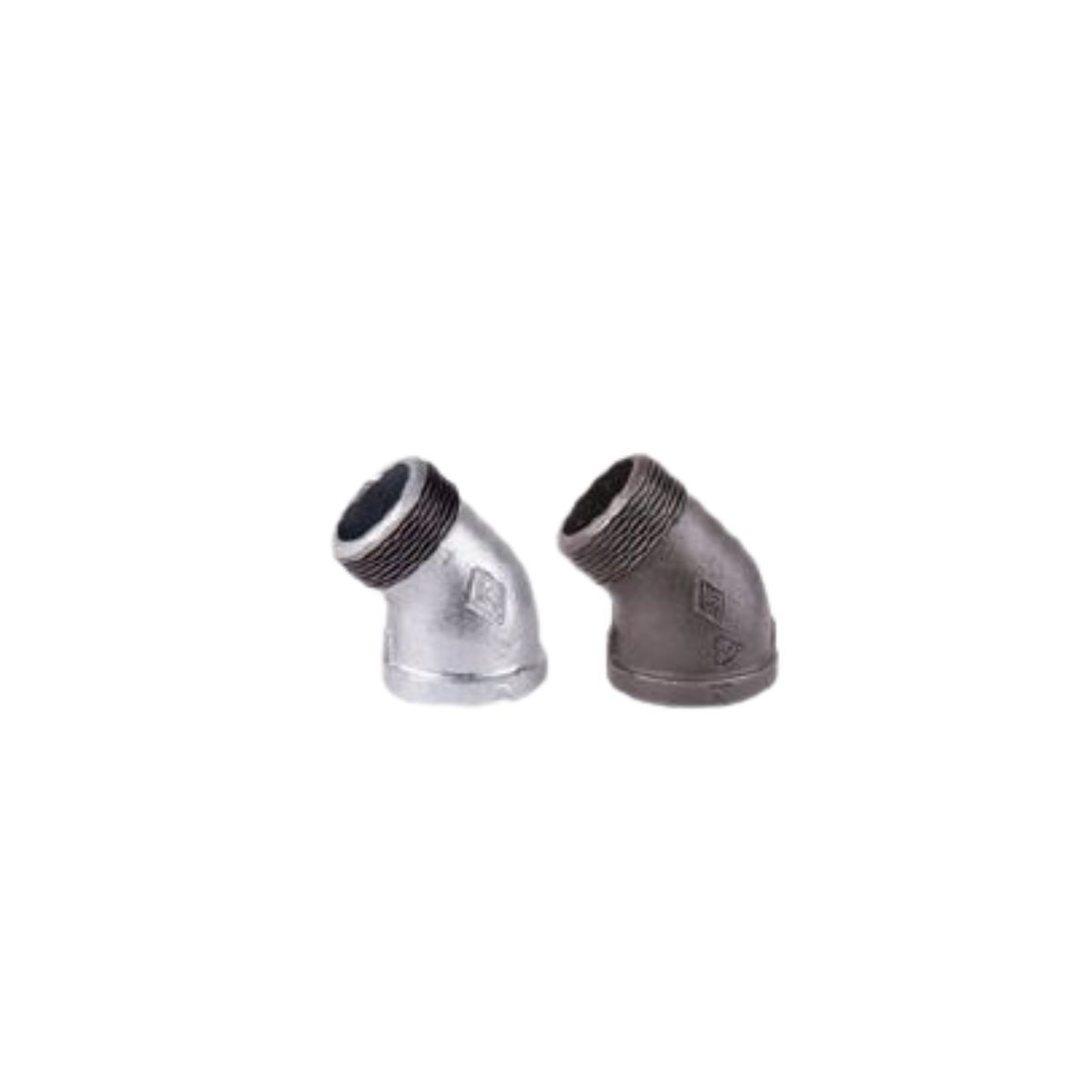

a technical drawing and two photographs of a 45-degree elbow pipe fitting. The technical drawing at the top includes dimensions labeled "A" and "B" and depicts the shape and angle of the elbow. Below the drawing, the text reads "Elbow M/F 45° Fig. 121." At the bottom, there are two photographs of the actual elbow fittings, one in a metallic finish and the other in a darker finish.

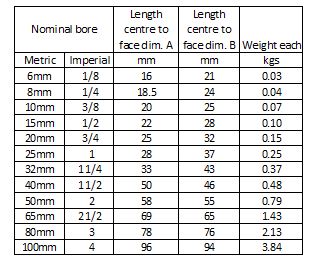

a detailed table listing nominal bore sizes in both metric and imperial units, along with corresponding dimensions (length center to face dimensions A and B in millimeters) and weights (in kilograms). The table includes various sizes from 6 mm (1/8 inch) to 100 mm (4 inches) with their respective measurements.

To download our data sheet as a PDF, please click the link below.

45 deg male female elbows fig. 121
