Spartan® box clamp

A technical drawing of a clamp, showing its dimensions and specifications. The total length is 97mm, with a jaw width of 78mm and a handle length of 90mm. The clamp features a threaded screw mechanism and a V-shaped jaw.
A diagram of a pipe clamp attached to a vertical pole. The clamp has two arms with adjustable knobs to secure the pipe.

Weights:

Clamp 82 grams

Aluminium clip 112 grams

A new addition to our range of G-clamps, plier clamps & floats

  • Using the same tried and tested engineering design
  • With the same thermoplastic materials suitable for all anodising processes.

Available in two different materials:

  • Standard for temperatures up to 105°C, designed to address specific problems associated with hostile environments, such as acid, heat, paint & solvents.

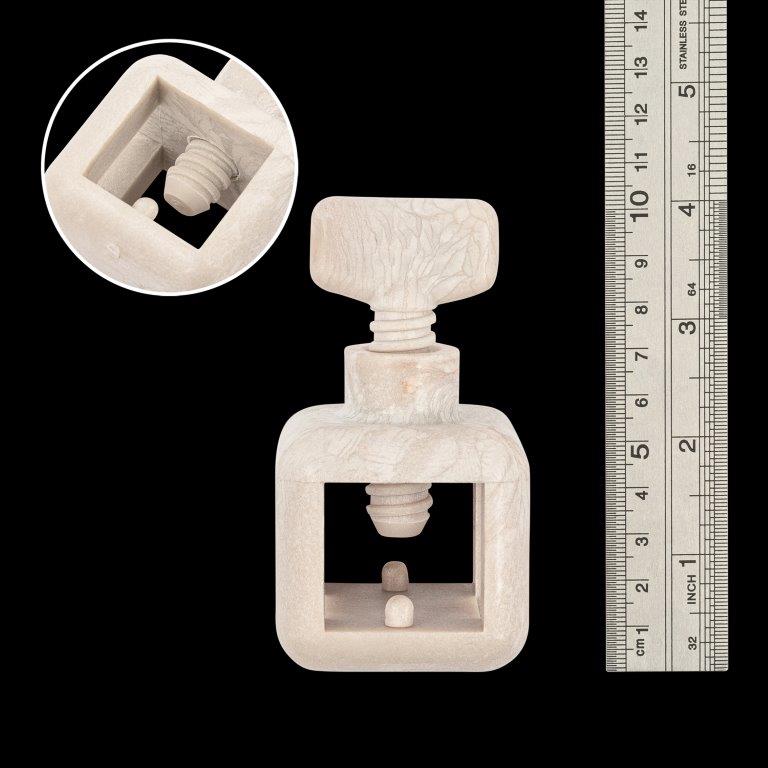

  • High-temperature up to 220°C, superior engineering thermoplastic suitable for phosphate brightening, chromate pre-treatment, finishing, paint and powder-coating lines .

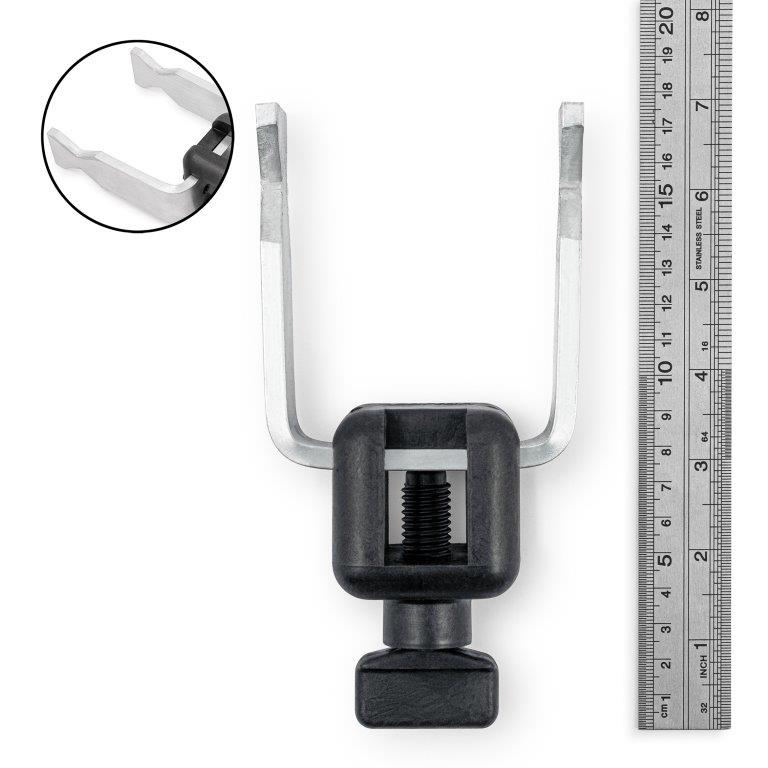

Available with or without aluminium clips

Quick & easy to set

Adjustable to accommodate a wide variety of shapes & sizes

Holds profiles securely.

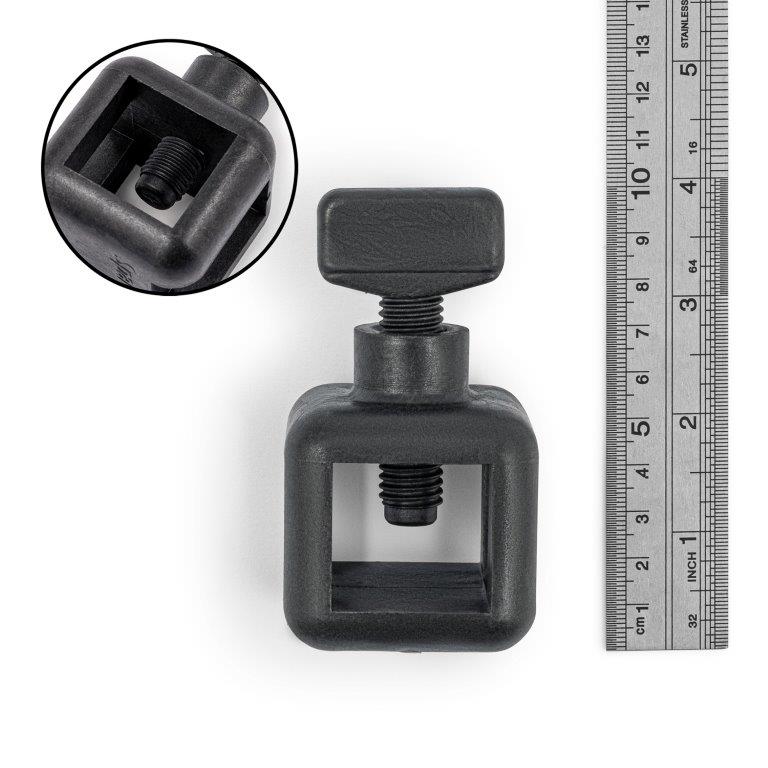

Available with or without locator pegs for aluminium clip.

Aluminium clip sold as separate item.

A diagram of a clamp mechanism with two white arms attached to a vertical pole. The clamp is holding a pipe in place.
A close-up photo of a clamp mechanism with two metal arms and a black plastic base. The arms have a serrated texture and appear to be designed to grip something
A 3D rendering of two plastic clamps with a square base and a small, protruding knob on top.

To download our data sheet as a PDF, please click the link below.

Box clamp
