Spartan® Euro clamps: applications
Primarily developed for use in metal finishing plants as a G clamp tool, the Spartan Euro clamp is capable of withstanding the corrosive attack of chemicals used within the industry.
Spartan® Euro clamps: description

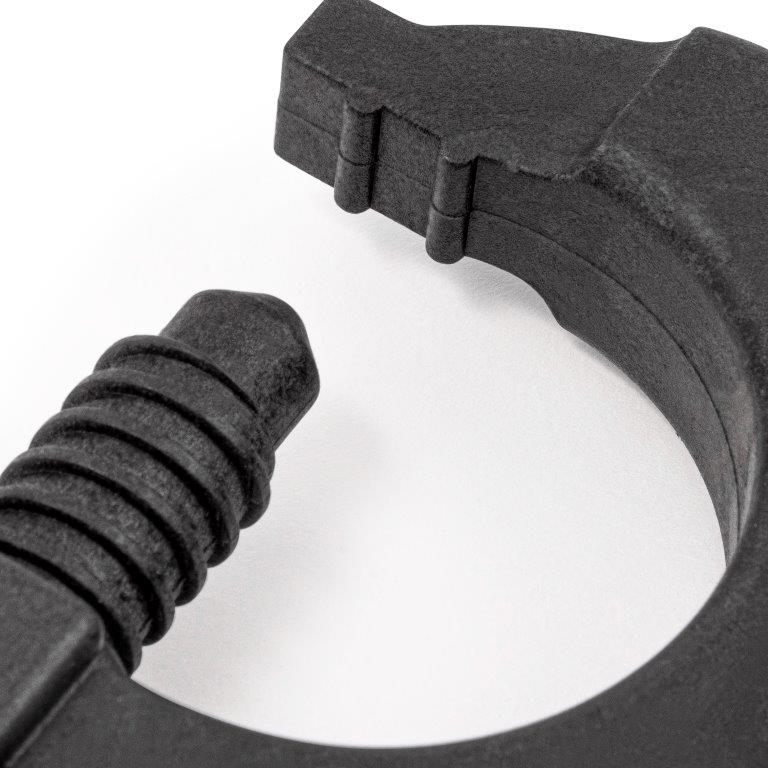

A tip may be added if required for minimising marking of components and giving extra resistance to slip. Spartan® Euro clamps can be supplied in titanium, zirconium or ceramic. As standard the clamping force is provided by a screw with a fine thread. A version with a coarse ‘fast’ thread for thumb tightening is also available.
Spartan® Euro clamps are moulded in glass-filled Noryl for use in anodising; giving a maximum usable temperature of 105°C, or they can be moulded in glass-filled Radel, for use in painting and electro-brightening and at temperatures up to 220°C.
Individual data sheets are available on request.

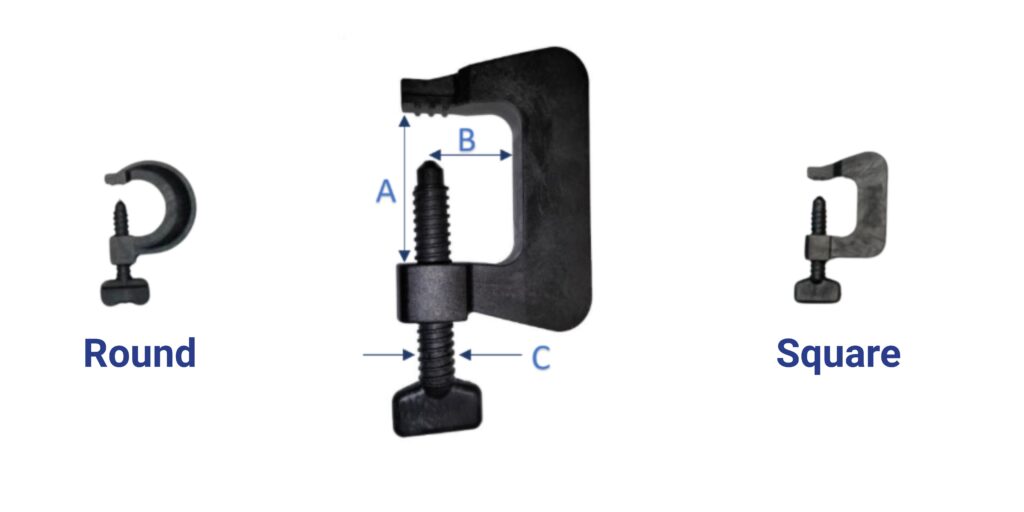

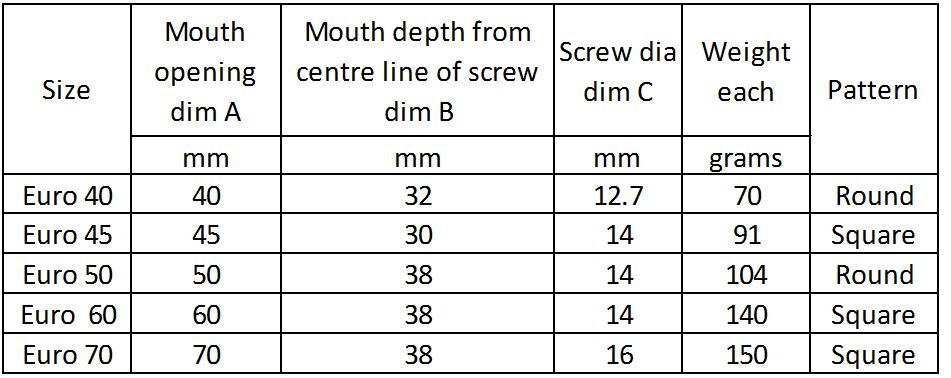

| SIZE | MOUTH OPENING DIM A (MM) | MOUTH DEPTH FROM CENTRE LINE OF SCREW DIM B (MM) | SCREW DIAMETER DIM C (MM) | WEIGHT EACH (GRAMS) | PATTERN |
|---|---|---|---|---|---|
| Euro 40 | 40 | 32 | 12.7 | 70 | Round |

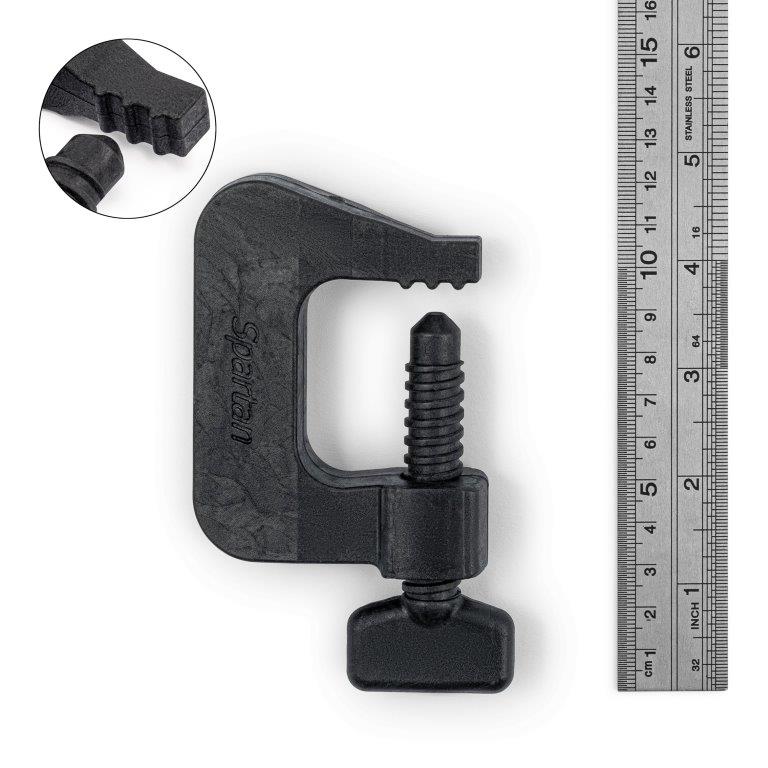

| Euro 45 | 45 | 30 | 14 | 91 | Square |

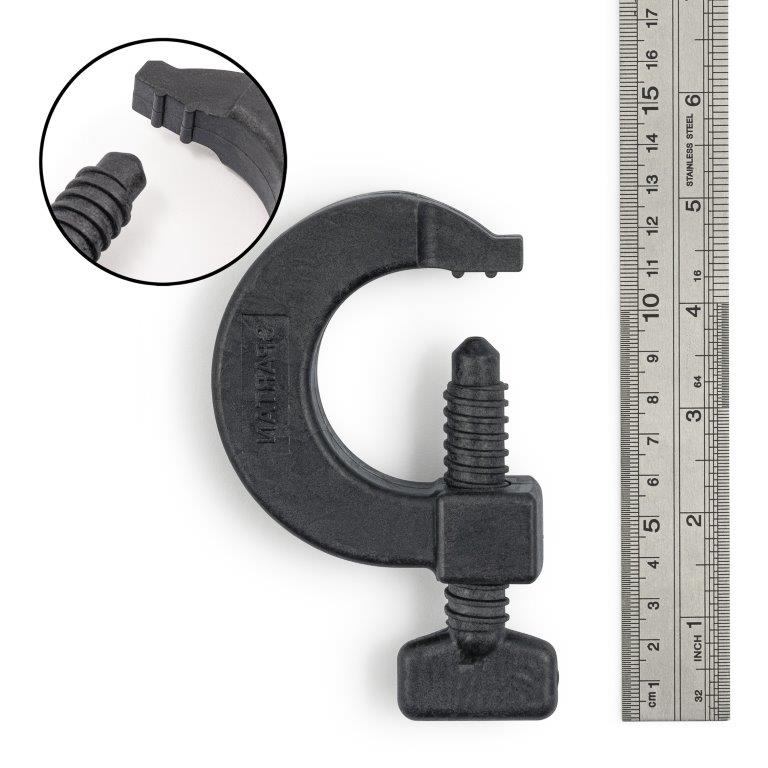

| Euro 50 | 50 | 38 | 14 | 104 | Round |
| Euro 60 | 60 | 38 | 14 | 140 | Square |
| Euro 65 | 65 | 42 | 16 | 150 | Square |

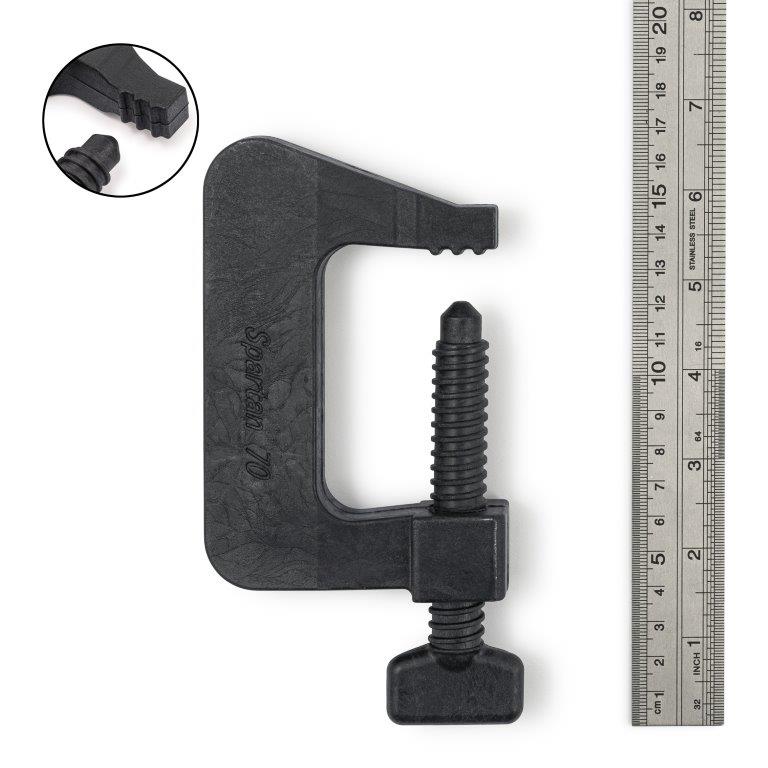

| Euro 70 | 70 | 38 | 16 | 150 | Square |
Download our data sheet as a PDF:
How to order
Call 01384 563 200 to order directly from us – the manufacturers.
