Fitted with two backnuts on parallel end. NPT threads and BSP taper both ends are available. Special patterns are available on request.
Other wall thicknesses and materials are available on request.
Maximum recommended pressure rating 16 bar with steam up to 260 degrees C.

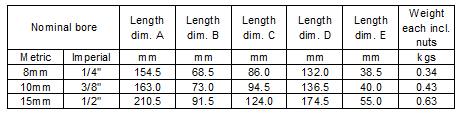

Dimensions and weights chart
| Nominal bore | Nominal bore | Length dim. A | Length dim. B | Length dim. C | Length dim. D | Length dim. E | Weight each including nuts |
| Metric | Imperial | mm | mm | mm | mm | mm | kg |
| 8mm | 1/4″ | 154.5 | 68.5 | 86.0 | 132.0 | 38.5 | 0.34 |
| 10mm | 3/8″ | 163.0 | 73.0 | 94.5 | 136.5 | 40.0 | 0.43 |
| 15mm | 1/2″ | 210.5 | 91.5 | 124.0 | 174.5 | 55.0 | 0.63 |
To download our data sheet as a PDF, follow the link below:
