Malleable cone seat union elbows

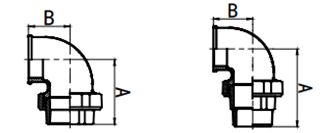

The image shows technical engineering diagrams of two similar pipe fittings or connectors viewed from the side. Each fitting appears to be a 90-degree elbow joint with threaded connections. The diagrams include dimension lines labeled with "A" and "B" measurements. The fittings are shown in cross-section to reveal their internal structure and threading details. The two diagrams appear to be showing the same type of fitting from slightly different angles or variations.
Cone seat union elbow iron to iron seats Female fig. 96 Male/female fig. 98

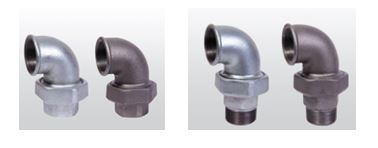

The image shows two sets of metal pipe fittings, each set consisting of two elbow joints connected to union fittings. The fittings on the left are silver, while the fittings on the right are darker in color. Both sets appear to be made of different types of metal, possibly indicating different materials or finishes.

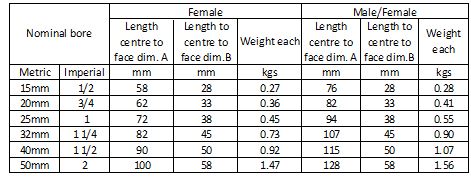

A table comparing the dimensions and weights of pipe fittings for different nominal bore sizes. The table includes columns for nominal bore in metric and imperial units, length center to face dimensions for female and male/female fittings, and the weight of each fitting in kilograms. The nominal bore sizes range from 15 mm (1/2 inch) to 50 mm (2 inches).

To download our data sheet as a PDF, please click the link below.

Union elbows figs. 96 and 98
