Malleable iron female 90° elbows

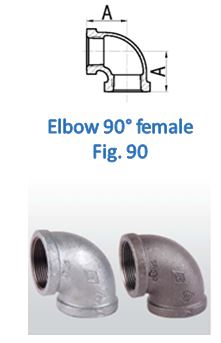

Diagram and photograph of a 90-degree female elbow pipe fitting. The diagram shows the dimensions labeled 'A' for the fitting. Below the diagram, the text reads 'Elbow 90° female Fig. 90.' The photograph shows two metal elbow fittings, one in a silver color and the other in a darker, possibly bronze color.

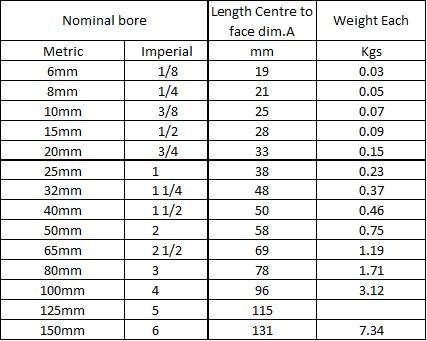

A table showing the nominal bore sizes in both metric and imperial units, the length from the center to face dimension A in millimeters, and the weight of each item in kilograms. The table includes sizes ranging from 6mm (1/8 inch) to 150mm (6 inches), with corresponding lengths and weights.

To download our data sheet as a PDF, please click the link below.

90 deg fem. elbows fig.90
