Malleable Cap

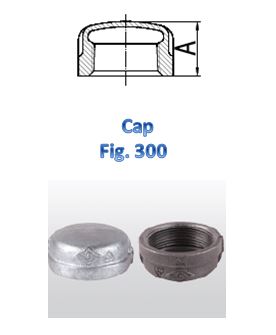

The image shows a technical drawing and a photograph of a cap, labeled as "Cap Fig. 300." The technical drawing at the top illustrates the cross-sectional view of the cap, highlighting its dimensions. Below the drawing, there is a photograph of the actual cap, showing both the exterior and interior threaded sections.
A table showing the nominal bore sizes in both metric and imperial units, along with corresponding length dimensions in millimeters and weights in kilograms. The table has three columns: "Nominal bore" with sub-columns "Metric" and "Imperial," "Length dim. A" in millimeters, and "Weight each" in kilograms. The rows list various sizes from 6 mm (1/8 inch) to 100 mm (4 inches), with corresponding lengths and weights.

To download our data sheet as a PDF, please click the link below.

Caps fig. 300
