Malleable female cone seat unions

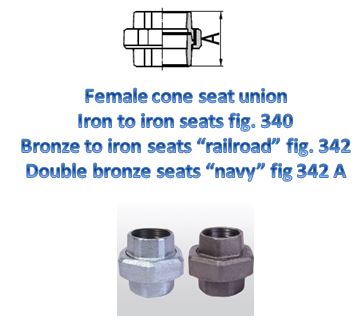

Diagram and photograph of a female cone seat union. The diagram shows the technical drawing of the union, while the photograph displays two physical examples of the union, one in a lighter metal and one in a darker metal. The text reads: "Female cone seat union. Iron to iron seats fig. 340. Bronze to iron seats 'railroad' fig. 342. Double bronze seats 'navy' fig 342 A."
table showing the nominal bore sizes in both metric and imperial units, along with corresponding length dimensions in millimeters and weights in kilograms. The table includes sizes from 6 mm (1/8 inch) to 100 mm (4 inches), with lengths ranging from 38 mm to 100 mm and weights from 0.08 kgs to 3.82 kgs.

To download our data sheet as a PDF, please click the link below.

Male female cone seat unions fig 341
