Malleable equal cross

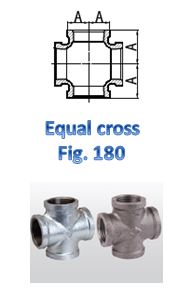

A technical drawing and two photographs of an equal cross pipe fitting. The technical drawing shows the dimensions and structure of the fitting, labeled as "Fig. 180." Below the drawing, there are two photographs of the actual fittings, one in a metallic finish and the other in a darker, possibly cast iron finish.
A table showing the nominal bore sizes in both metric and imperial units, the length from the center to face dimension in millimeters, and the weight of each item in kilograms. The table includes the following columns: Nominal bore (Metric and Imperial), Length Centre to face dim. A (mm), and Weight each (kgs). The rows list various sizes and their corresponding measurements and weights.

To download our data sheet as a PDF, please click the link below.

Equal crosses fig. 180
