Malleable equal hexagon nipple

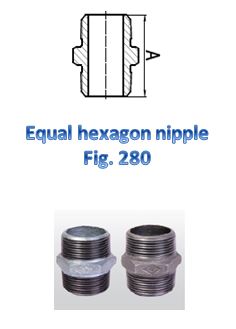

Diagram and photograph of an equal hexagon nipple, labeled as Fig. 280. The diagram shows a cross-sectional view of the nipple with a hexagonal middle section and threaded ends. Below the diagram, there is a photograph of two equal hexagon nipples, one with a shiny finish and the other with a matte finish. This image provides a clear visual reference for the design and appearance of this specific type of fitting, commonly used in plumbing or mechanical systems to connect two pipes or hoses of the same diameter.
A table showing the nominal bore sizes in both metric and imperial units, along with corresponding length dimensions in millimeters and weights in kilograms. The table includes sizes ranging from 6 mm (1/8 inch) to 100 mm (4 inches), with lengths from 29 mm to 95 mm and weights from 0.02 kg to 1.52 kg. The image provides detailed information on the dimensions and weights of various bore sizes, which can be useful for engineering, manufacturing, or construction purposes.

To download our data sheet as a PDF, please click the link below.

Equal hex nipples fig. 280
