Malleable equal pitcher tee

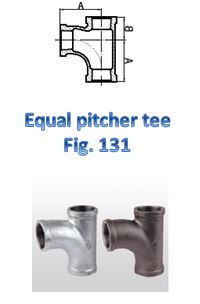

Diagram and photograph of an equal pitcher tee pipe fitting labeled as Fig. 131. The diagram shows the technical drawing of the fitting, while the photograph displays two physical examples of the fitting in different materials. This image provides a clear visual reference for the design and physical appearance of an equal pitcher tee pipe fitting, which is used in plumbing and piping systems to connect three pipes of equal diameter at right angles.
A table displaying the dimensions and weights of pipes with different nominal bores. It includes columns for nominal bore (both in metric and imperial units), length center to face dimension A (in mm), length center to face dimension B (in mm), and weight (in kgs). The rows list the following data: 15mm (1/2 inch): A = 45 mm, B = 24 mm, weight = 0.20 kgs 20mm (3/4 inch): A = 50 mm, B = 28 mm, weight = 0.25 kgs 25mm (1 inch): A = 63 mm, B = 33 mm, weight = 0.38 kgs 32mm (1 1/4 inch): A = 76 mm, B = 40 mm, weight = 0.66 kgs 40mm (1 1/2 inch): A = 85 mm, B = 43 mm, weight = 1.13 kgs 50mm (2 inch): A = 102 mm, B = 53 mm, weight = 1.86 kgs This table provides detailed measurements and weights for various pipe sizes, useful for planning and installation purposes.

To download our data sheet as a PDF, please click the link below.

Malleable only

Pitcher tees equal and reducing figs. 131 and 131R
