Malleable Hex Bush

The image shows a technical drawing and two photographs of a hex bush, labeled as "Hex bush Fig. 241." The technical drawing at the top illustrates the cross-sectional view of the hex bush, highlighting its dimensions with a labeled dimension "A." Below the drawing, there are two photographs of the hex bush, one with a metallic finish and the other with a darker finish. The hex bush is a threaded fitting used in plumbing or mechanical systems to connect pipes of different sizes.

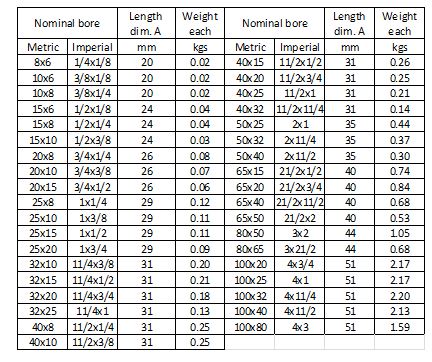

A table listing various nominal bore sizes in both metric and imperial units, along with their corresponding length dimensions in millimeters and weights in kilograms. The table is divided into two sections, each containing columns for nominal bore (metric and imperial), length dimension A (mm), and weight each (kgs). The first section includes bore sizes ranging from 8x6 to 40x10, while the second section includes bore sizes ranging from 40x15 to 100x80. The weights range from 0.02 kgs to 2.20 kgs.

To download our data sheet as a PDF, please click the link below.

Hex bushes fig. 241
