Malleable iron bends

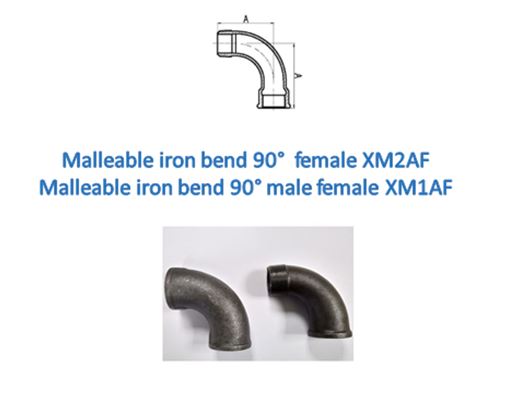

a technical drawing and two photographs of malleable iron 90-degree pipe bends. The technical drawing at the top illustrates the dimensions of a 90-degree bend with labeled points A and B. Below the drawing, there are two lines of text: "Malleable iron bend 90° female XM2AF" and "Malleable iron bend 90° male female XM1AF." At the bottom, there are two photographs of the actual pipe bends, one with both ends female and the other with one end male and one end female.

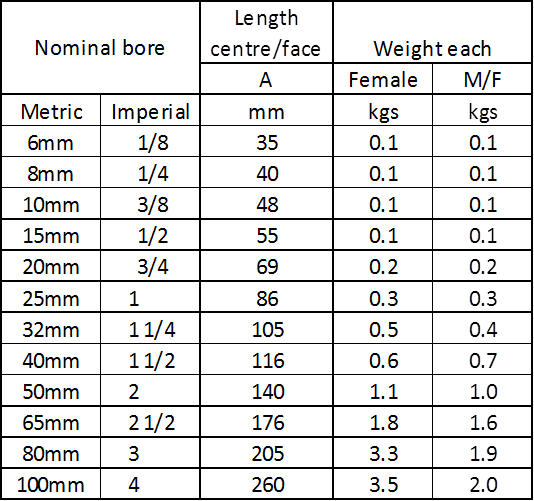

A table showing the nominal bore sizes in both metric and imperial units, the length from center to face in millimeters, and the weight of each item in kilograms for both female and male/female categories. The table includes sizes ranging from 6mm (1/8 inch) to 100mm (4 inches), with corresponding lengths and weights.

To download our data sheet as a PDF, please click the link below.

90 deg bends XM1AF – XM2AF
