Malleable M/F cone seat unions

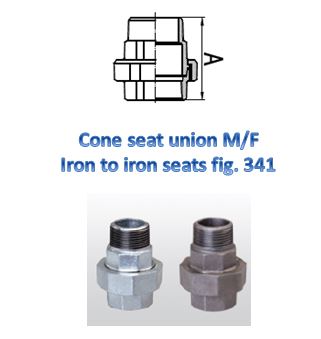

Diagram and photograph of a cone seat union M/F iron to iron seats fig. 341. The diagram shows the dimensions of the union, labeled with 'A'. Below the diagram, there are two photographs of the actual cone seat unions, one in a lighter color and one in a darker color.

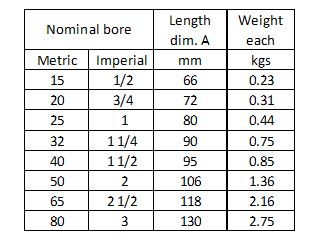

A table showing the nominal bore sizes in both metric and imperial units, along with corresponding length dimensions in millimeters and weights in kilograms. The table has four columns: "Nominal bore" with sub-columns "Metric" and "Imperial," "Length dim. A" in millimeters, and "Weight each" in kilograms. The rows list the following data: Metric: 15, Imperial: 1/2, Length dim. A: 66 mm, Weight each: 0.23 kgs Metric: 20, Imperial: 3/4, Length dim. A: 72 mm, Weight each: 0.31 kgs Metric: 25, Imperial: 1, Length dim. A: 80 mm, Weight each: 0.44 kgs Metric: 32, Imperial: 1 1/4, Length dim. A: 90 mm, Weight each: 0.75 kgs Metric: 40, Imperial: 1 1/2, Length dim. A: 95 mm, Weight each: 0.85 kgs Metric: 50, Imperial: 2, Length dim. A: 106 mm, Weight each: 1.36 kgs Metric: 65, Imperial: 2 1/2, Length dim. A: 118 mm, Weight each: 2.16 kgs Metric: 80, Imperial: 3, Length dim. A: 130 mm, Weight each: 2.75 kgs

To download our data sheet as a PDF, please click the link below.

Male female cone seat unions fig 341
