Malleable reducing pitcher tee

The image shows a technical drawing and two photographs of a reducing pitcher tee, labeled as "Fig. 131R." The technical drawing at the top illustrates the dimensions and structure of the reducing pitcher tee. Below the drawing, the text "Reducing pitcher tee Fig. 131R" is written in blue. At the bottom, there are two photographs of the actual reducing pitcher tee, one in a silver finish and the other in a darker, possibly iron finish.

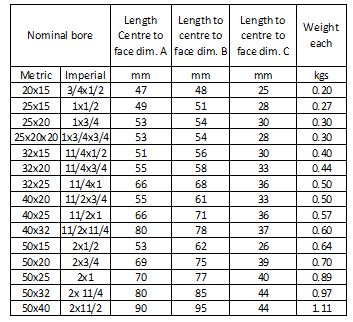

A table showing the dimensions and weights of various nominal bore sizes in both metric and imperial units. The table includes columns for the nominal bore size, length center to face dimensions (A, B, and C), and weight for each size. The dimensions are given in millimeters (mm) and the weights in kilograms (kgs).

To download our data sheet as a PDF, please click the link below.

Pitcher tees equal and reducing figs. 131 and 131R
