Malleable taper thread socket

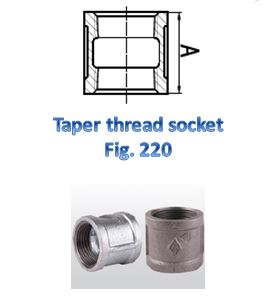

Diagram and photograph of a taper thread socket, labeled as "Fig. 220." The diagram shows a cross-sectional view of the socket with taper threads, highlighting its dimensions. Below the diagram, the text "Taper thread socket Fig. 220" is written. At the bottom, there are two photographs of the actual socket, one in a shiny metallic finish and the other in a darker finish.

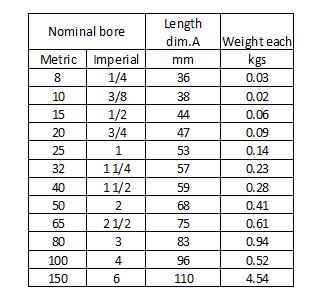

A table showing the nominal bore sizes in both metric and imperial units, along with corresponding length dimensions in millimeters and weights in kilograms. The table includes sizes ranging from 8 mm (1/4 inch) to 150 mm (6 inches), with lengths from 36 mm to 110 mm and weights from 0.02 kg to 4.54 kg.

To download our data sheet as a PDF, please click the link below.

Taper sockets fig. 220
