Malleable iron reducing tees

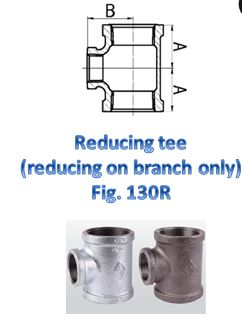

Diagram and photograph of a reducing tee pipe fitting. The diagram shows the dimensions labeled as A and B, indicating the size of the main pipe and the branch pipe, respectively. Below the diagram, the text reads "Reducing tee (reducing on branch only) Fig. 130R." Two photographs of the reducing tee are shown, one in a metallic finish and the other in a darker finish.

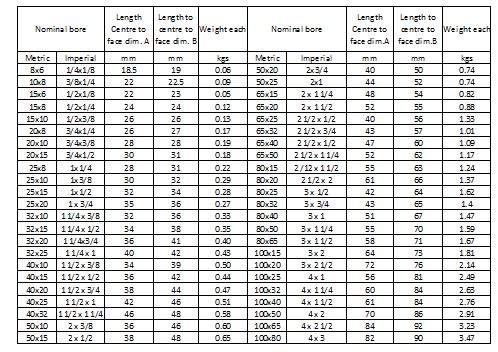

A table listing various nominal bore sizes in both metric and imperial units, along with corresponding dimensions and weights. The table includes columns for nominal bore, length center to face dimension A, length center to center dimension B, and weight for each size. The dimensions are provided in millimeters and kilograms.

To download our data sheet as a PDF, please click the link below.

Reducing tees fig. 130R
