BS EN10241 equal hex nipples

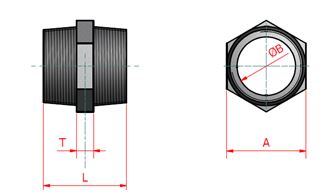

A technical drawing of a hydraulic fitting, showing its cross-section. Thread 1 is BSP taper to ISO 7.1, and Thread 2 is BSP parallel to ISO 7.1. Dimensions "L" and "A" are indicated.
A diagram of a hydraulic fitting with labeled dimensions. The dimensions are labeled "L", "A", and "T".

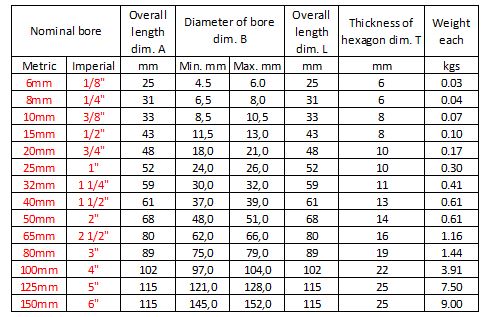

Dimensions and weights chart

A table listing the nominal bore, overall length, diameter of bore (minimum and maximum), overall length, thickness of hexagon, and weight of pipe plugs in both metric and imperial units.

To download our data sheet as a PDF, please click the link below.

WI equal hex nipple
