BS EN10241 male/female elbows

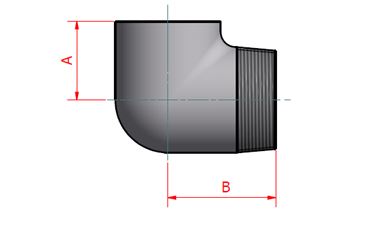

A cross-sectional diagram illustrating a 90° elbow fitting. The diagram shows the curved section of the fitting and the threaded end. Dimensions are labeled "A" and "B".
A black metal 90° elbow fitting with male NPT threads.

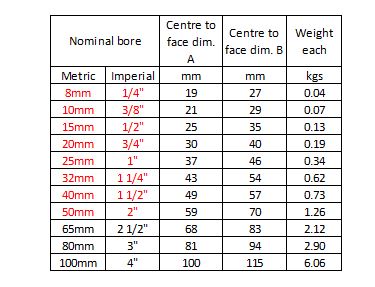

Dimensions and weights chart

A table of pipe elbow dimensions and weights, specifying the nominal bore, centre to face dimensions A and B, and weight per piece.

To download our data sheet as a PDF, please click the link below.

WI M&F elbow
