90 degree female elbow and equal tees

A cross-sectional diagram illustrating a 90° elbow fitting. The diagram shows the curved section of the fitting and the threaded end. Dimensions are labeled "A".
A cross-sectional diagram illustrating a tee fitting. The diagram shows the three branches of the fitting, with dimensions labeled "L" and "A".

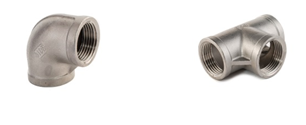

Two stainless steel pipe fittings with female NPT threads. The fitting on the left is an elbow, and the fitting on the right is a tee.

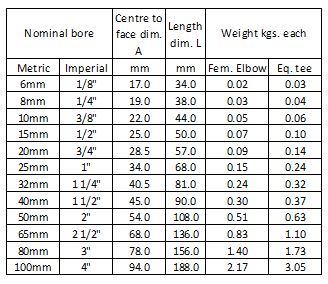

A table listing the nominal bore, center to face dimension, length, and weight of pipe nipples in both metric and imperial units.

To download our data sheet as a PDF, please click the link below.

90 deg elbow and tee
