Female socket unions and male/female socket unions

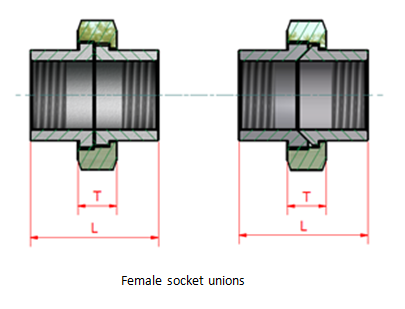

A technical drawing of two female socket unions, showing the threaded ends and internal sockets. Dimensions for thread depth ("T") and length ("L") are indicated.
Two stainless steel unions, one disassembled showing the individual components, and one assembled.

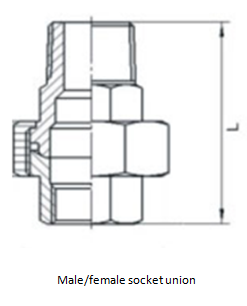

A cross-sectional diagram illustrating a male/female socket union. The diagram shows the threaded male end and the internal female socket. Dimensions are labeled with "L".
A stainless steel union.

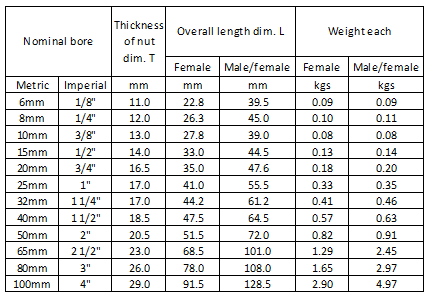

A table of union dimensions and weights, including nominal bore, nut thickness, overall length, and weight per piece for female and male/female unions.

To download our data sheet as a PDF, please click the link below.

Female- Male-Female socket unions
