Hose tail

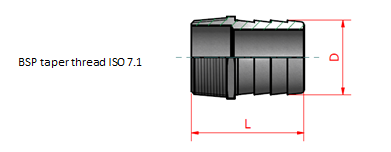

A technical drawing of a BSP taper thread ISO 7.1 fitting. The fitting is shown in a side view with dimensions labeled as D (diameter) and L (length). The fitting has a threaded section and a smooth section.
A metal pipe fitting or adapter is shown against a white background. The fitting has a threaded end on one side and a straight barbed or ribbed connection on the other side, made of what appears to be stainless steel or similar metal. It's photographed from a slight angle to show both connection types.

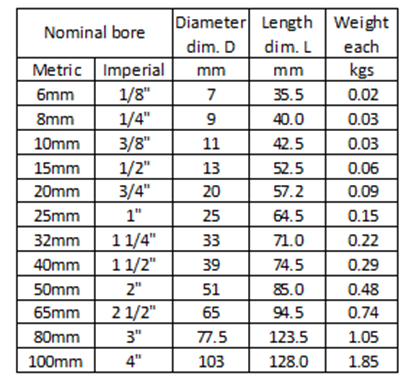

A table showing the specifications of pipes with different nominal bore sizes in both metric and imperial units. The table includes columns for nominal bore size, diameter (dim. D) in millimeters, length (dim. L) in millimeters, and weight each in kilograms. The nominal bore sizes range from 6mm (1/8") to 100mm (4"). The diameter ranges from 7mm to 103mm, the length ranges from 35.5mm to 128.0mm, and the weight ranges from 0.02 kgs to 1.85 kgs.

To download our data sheet as a PDF, please click the link below.
