Instructions for use of Unicone®

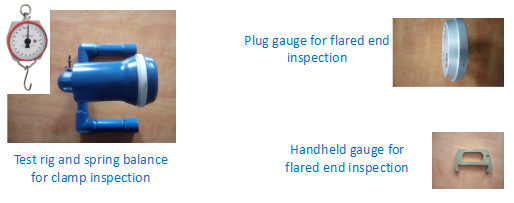

The image shows three different inspection tools used for clamp and flared end inspections. On the left, there is a test rig and spring balance for clamp inspection, consisting of a blue device and a hanging spring balance. On the right, there are two gauges: a plug gauge for flared end inspection, which is a cylindrical metal piece, and a handheld gauge for flared end inspection, which is a U-shaped metal tool.

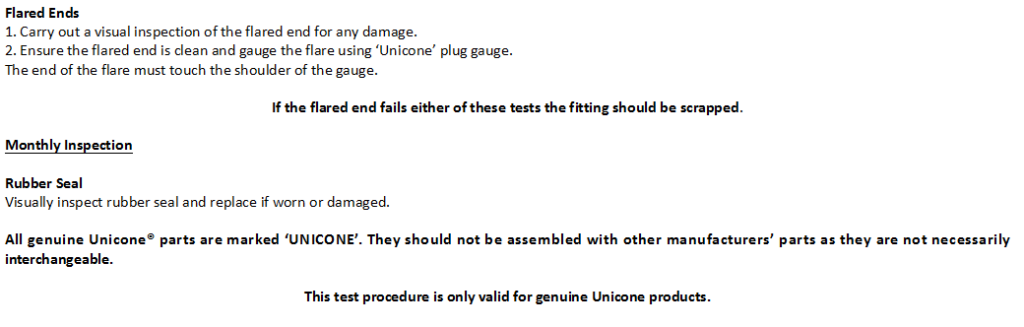

The image contains instructions for inspecting flared ends and rubber seals of Unicone products. It includes steps for visual inspection and gauging of flared ends, and a note that fittings should be scrapped if they fail the tests. It also mentions monthly inspection of rubber seals and advises against mixing Unicone parts with other manufacturers' parts.
