UNICONE® Female adaptors

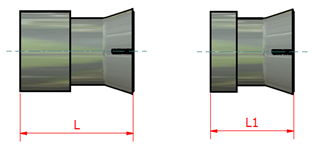

two side-by-side cross-sectional views of cylindrical objects with flared ends. The left object is labeled with the length "L," and the right object is labeled with the length "L1." Both objects have a central axis indicated by a dashed line.

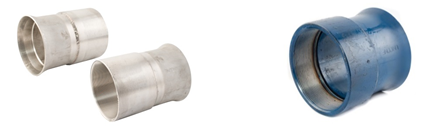

three metal pipe fittings. Two of the fittings are silver-colored and placed on the left side of the image, while the third fitting is blue-colored and placed on the right side of the image. The fittings appear to be cylindrical and are likely used for connecting sections of pipe in plumbing or industrial applications.

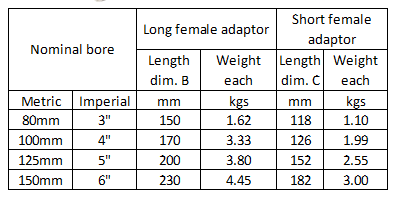

A table comparing the dimensions and weights of long and short female adaptors for different nominal bore sizes. The table has columns for nominal bore (in both metric and imperial units), length (dim. B and dim. C in mm), and weight (in kgs) for both long and short female adaptors. The nominal bore sizes listed are 80mm (3"), 100mm (4"), 125mm (5"), and 150mm (6"). The lengths and weights for long female adaptors are: 150mm and 1.62kgs, 170mm and 3.33kgs, 200mm and 3.80kgs, 230mm and 4.45kgs. For short female adaptors, the lengths and weights are: 118mm and 1.10kgs, 126mm and 1.99kgs, 152mm and 2.55kgs, 182mm and 3.00kgs.

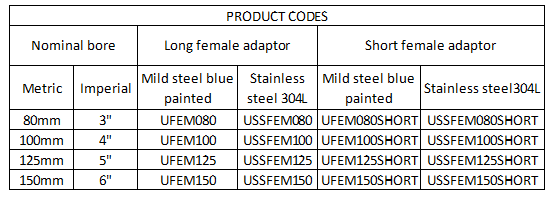

A table titled "PRODUCT CODES" lists product codes for long and short female adaptors. The table has columns for nominal bore (in metric and imperial units), long female adaptor (mild steel blue painted and stainless steel 304L), and short female adaptor (mild steel blue painted and stainless steel 304L). The rows provide product codes for nominal bores of 80mm (3"), 100mm (4"), 125mm (5"), and 150mm (6"). For example, the product code for a long female adaptor with a nominal bore of 80mm in mild steel blue painted is UFEM080, and in stainless steel 304L is USSFEM080.

To download our data sheet as a PDF, please click the link below.

Female adaptors
