UNICONE® Flanged adaptor

A side view of a mechanical component with a flange on the right side. The component has a conical section on the left and a cylindrical section in the middle. A red double-headed arrow labeled "F" indicates the distance between the leftmost and rightmost points of the component.
A blue metal flange with a cylindrical extension and multiple bolt holes around its perimeter.

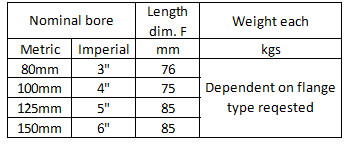

A table showing nominal bore sizes in both metric and imperial units, length dimension F in millimeters, and weight each in kilograms. The table includes the following data: For a nominal bore of 80mm (3"), the length dimension F is 76mm. For a nominal bore of 100mm (4"), the length dimension F is 75mm. For a nominal bore of 125mm (5"), the length dimension F is 85mm. For a nominal bore of 150mm (6"), the length dimension F is 85mm. The weight for each is dependent on the flange type requested

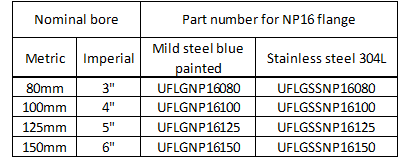

A table showing the part numbers for NP16 flanges based on nominal bore sizes. The table has columns for nominal bore in metric and imperial units, and part numbers for mild steel blue painted and stainless steel 304L materials. The nominal bore sizes listed are 80mm (3"), 100mm (4"), 125mm (5"), and 150mm (6"). The corresponding part numbers for mild steel blue painted are UFLGNP16080, UFLGNP16100, UFLGNP16125, and UFLGNP16150. The part numbers for stainless steel 304L are UFLGSSNP16080, UFLGSSNP16100, UFLGSSNP16125, and UFLGSSNP16150.

To download our data sheet as a PDF, please click the link below.

Flanged adaptor
