UNICONE® Hose tails

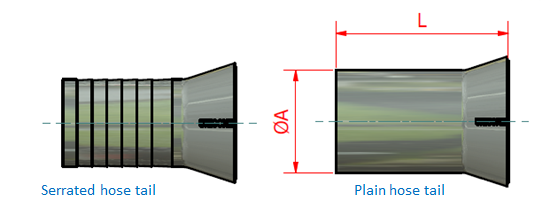

The image shows two types of hose tails. The left side depicts a serrated hose tail with multiple ridges along its length. The right side shows a plain hose tail with a smooth surface. The plain hose tail has dimensions labeled: length (L) and diameter (ØA).

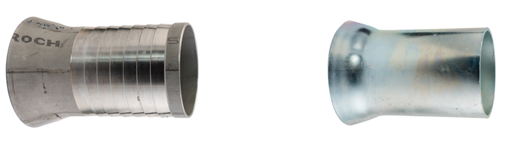

The image shows two metal pipe fittings or couplings side by side. The left fitting appears to be stainless steel with visible ridged banding or ribbing around its exterior. The right fitting is smoother and has a more polished or galvanized appearance. Both are straight cylindrical connectors photographed from a similar angle.

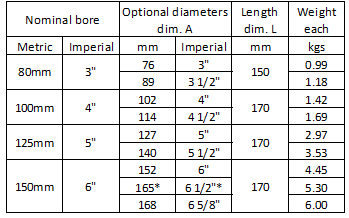

A table showing the specifications of pipes with different nominal bores. The table includes columns for nominal bore (both metric and imperial), optional diameters (in both mm and inches), length (in mm), and weight (in kgs). The nominal bores range from 80mm (3") to 150mm (6"), with corresponding optional diameters, lengths, and weights listed for each size.

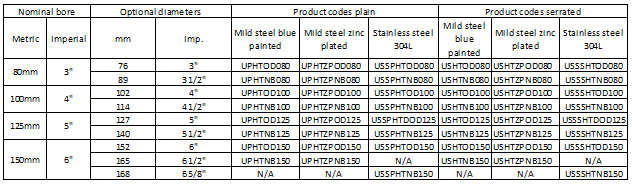

A table showing product codes for different types of steel pipes with various nominal bore sizes. The table includes columns for nominal bore (in metric and imperial units), optional diameters (in mm and imperial units), and product codes for plain and serrated pipes made of mild steel (blue painted and zinc plated) and stainless steel (304L). The nominal bore sizes range from 80mm (3") to 150mm (6").
