UNICONE® Long male screwed adaptor

A cylindrical object with a threaded section on the left and a flared end on the right. The length of the cylinder is labeled "A" with red arrows indicating the measurement from one end to the other.
A metallic cylindrical object with a flared end and a smooth surface, likely a component of a mechanical or industrial system. The image shows a metallic cylindrical object with a flared end. The surface of the object is smooth, and it appears to be a component used in mechanical or industrial systems. This object is interesting because it highlights the precision and design of industrial components, which are essential for various applications in engineering and manufacturing.

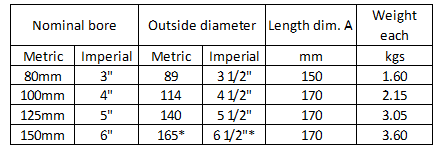

A table comparing nominal bore sizes in both metric and imperial units, along with corresponding outside diameters, length dimensions, and weights. The table has five columns: Nominal bore (Metric and Imperial), Outside diameter (Metric and Imperial), Length dim. A (mm), and Weight each (kgs). The rows provide data for bore sizes of 80mm, 100mm, 125mm, and 150mm.

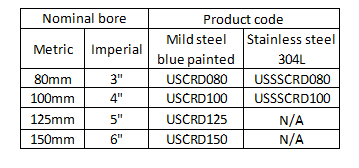

A table showing nominal bore sizes in both metric and imperial units, along with corresponding product codes for mild steel blue painted and stainless steel 304L materials. The table has four rows and three columns. The first column lists the nominal bore sizes in metric (80mm, 100mm, 125mm, 150mm) and imperial (3", 4", 5", 6") units. The second column lists product codes for mild steel blue painted (USCRD080, USCRD100, USCRD125, USCRD150). The third column lists product codes for stainless steel 304L (USSSCRD080, USSSCRD100) with "N/A" for sizes 125mm and 150mm.

To download our data sheet as a PDF, please click the link below.

Long male screwed
