UNICONE® Short screwed adaptor

A technical drawing of a cylindrical object with three different views. The left view shows the object with dimensions labeled as diameter (ØA) and length (L). The middle view shows the object from the side, and the right view shows the object from the front.
The image shows three different types of pipe fittings. The first fitting on the left is a blue and silver metallic coupling. The middle fitting is a metallic reducer with a rough surface. The fitting on the right is a white plastic cap.

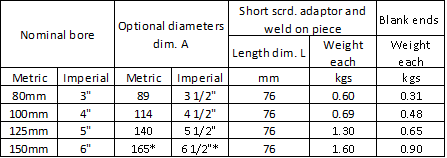

A table showing the specifications for short screwed adaptors and weld-on pieces. The table includes columns for nominal bore (in both metric and imperial units), optional diameters (dim. A in both metric and imperial units), length (dim. L in mm), and weight (in kgs). The rows provide data for nominal bores of 80mm (3"), 100mm (4"), 125mm (5"), and 150mm (6").

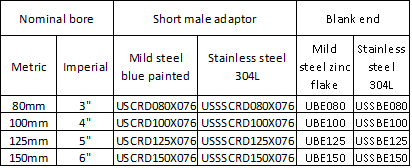

A table showing the nominal bore sizes in both metric and imperial units, and the corresponding short male adaptor codes for mild steel blue painted and stainless steel 304L materials. The nominal bore sizes listed are 80mm (3"), 100mm (4"), 125mm (5"), and 150mm (6"). The adaptor codes for mild steel blue painted are USCRD080X076, USCRD100X076, USCRD125X076, and USCRD150X076. The adaptor codes for stainless steel 304L are USSSCRD080X076, USSSCRD100X076, USSSCRD125X076, and USSSCRD150X076.
A table showing the nominal bore sizes in both metric and imperial units. The table has two columns: Metric and Imperial. The rows list the following conversions: 80mm is 3 inches, 100mm is 4 inches, 125mm is 5 inches, and 150mm is 6 inches.

To download our data sheet as a PDF, please click the link below.

Weld on piece – short male screwed – blank end
